Example Survival Trial

Nestlé rpact Training 2024, Lausanne

Gernot Wassmer and Friedrich Pahlke

May 23, 2024

The Situation

Assume we want to design a two-arm group sequential trial with a time to event endpoint where the summary measure of interest is the hazard ratio \(\omega\)

Suppose we wish to test

\[ H_0: \omega \geq 1 \text{ against } H_1: \omega < 1 \]

We require:

  • \(\alpha = 0.025\)
  • Power \(1 - \beta = 0.8\) at \(\omega = 0.6\)
  • Allocation ratio 1 : 1

Required Number of Events

Question 1

How many events would be required for a fixed sample size design?

library(rpact)
getSampleSizeSurvival(alpha = 0.025, beta = 0.2,
                      hazardRatio = 0.6) |> summary()

Required Number of Events

Sample size calculation for a survival endpoint

Fixed sample analysis, significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, H1: hazard ratio = 0.6, control pi(2) = 0.2, event time = 12, accrual time = 12, accrual intensity = 62.1, follow-up time = 6, power 80%.

Stage Fixed
Efficacy boundary (z-value scale) 1.960
Number of subjects 745.0
Number of events 120.3
Analysis time 18.00
Expected study duration 18.00
One-sided local significance level 0.0250
Efficacy boundary (t) 0.700

Legend:

  • (t): treatment effect scale

Required Number Of Subjects

Obviously, some default parameters were used to derive the required number of subjects

Required Number Of Subjects

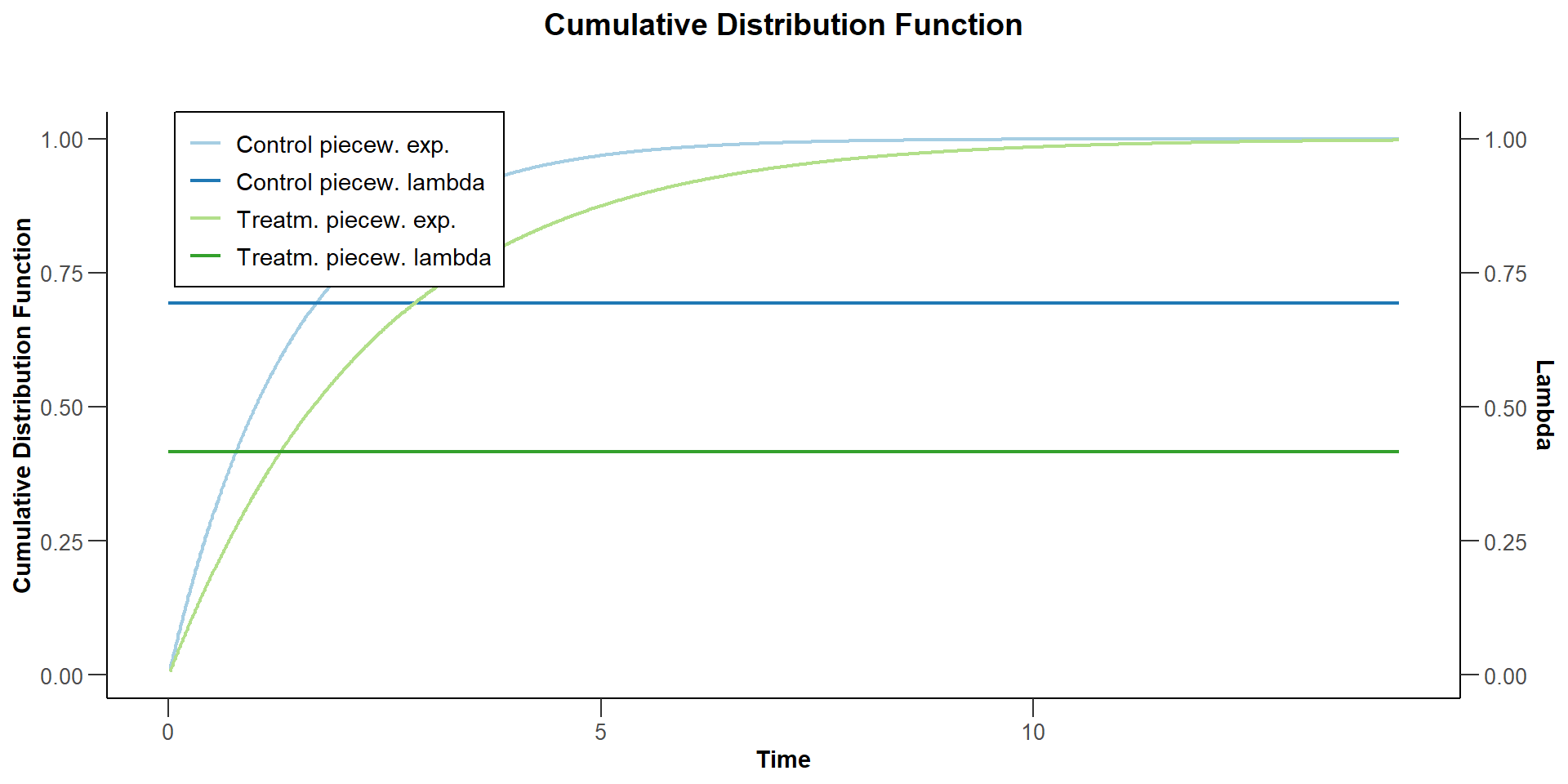

For the survival time distributions, we assume:

  • Median survival on the control arm is 1 year.
  • Exponential distributions.

Question 2

What is the sample size (number of subjects) for a fixed sample size design if the recruitment lasts 3 years and the (additional) follow-up time lasts 2 years, i.e., it is planned to conduct the study in 5 years?

getSampleSizeSurvival(alpha = 0.025, beta = 0.2,
                      hazardRatio = 0.6, median2 = 1,
                      accrualTime = 3,
                      followUpTime = 2) |> summary()

Required Number Of Subjects

Sample size calculation for a survival endpoint

Fixed sample analysis, significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, H1: hazard ratio = 0.6, control median(2) = 1, accrual time = 3, accrual intensity = 48.7, follow-up time = 2, power 80%.

Stage Fixed
Efficacy boundary (z-value scale) 1.960
Number of subjects 146.2
Number of events 120.3
Analysis time 5.00
Expected study duration 5.00
One-sided local significance level 0.0250
Efficacy boundary (t) 0.700

Legend:

  • (t): treatment effect scale

For recruitment assumptions, we assume:

  • It is possible to recruit 50 subjects per year at a uniform rate.
  • Recruitment lasts 3 years.

Question 3

What is the expected study duration for a fixed sample size design?

getSampleSizeSurvival(alpha = 0.025, beta = 0.2,
                      hazardRatio = 0.6, median2 = 1,
                      accrualTime = c(0, 3),
                      accrualIntensity = 50) |> summary()

Sample size calculation for a survival endpoint

Fixed sample analysis, significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, H1: hazard ratio = 0.6, control median(2) = 1, accrual time = 3, accrual intensity = 50, power 80%.

Stage Fixed
Efficacy boundary (z-value scale) 1.960
Number of subjects 150.0
Number of events 120.3
Analysis time 4.78
Expected study duration 4.78
One-sided local significance level 0.0250
Efficacy boundary (t) 0.700

Legend:

  • (t): treatment effect scale

Question 4

Suppose recruitment lasts 3.5 years instead of 3 years. What would be the expected study duration for a fixed sample size design?

getSampleSizeSurvival(alpha = 0.025, beta = 0.2,
                      hazardRatio = 0.6, median2 = 1,
                      accrualTime = c(0, 3.5),
                      accrualIntensity = 50) |> summary()

Sample size calculation for a survival endpoint

Fixed sample analysis, significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, H1: hazard ratio = 0.6, control median(2) = 1, accrual time = 3.5, accrual intensity = 50, power 80%.

Stage Fixed
Efficacy boundary (z-value scale) 1.960
Number of subjects 175.0
Number of events 120.3
Analysis time 4.20
Expected study duration 4.20
One-sided local significance level 0.0250
Efficacy boundary (t) 0.700

Legend:

  • (t): treatment effect scale

Adding An Interim Analysis

We wish to add an interim analysis for efficacy. The interim should happen after approximately half the required number of events. An O’Brien-Fleming type alpha-spending function will be used. No futility analysis is considered (for now).

design <- getDesignGroupSequential(typeOfDesign = "asOF",
    kMax = 2, alpha = 0.025, beta = 0.2)

Question 5

Using the same design assumptions as above with a recruitment period of 3.5 years, perform the sample size calculation.

  1. After how many events is the interim and final analysis to take place?

  2. How long would it take to reach the required number of interim and final events according to the design assumptions?

  3. What is the critical value for the hazard ratio at the interim and final analysis?

getSampleSizeSurvival(design = design,
        hazardRatio = 0.6, median2 = 1,
        accrualTime = c(0, 3.5),
        accrualIntensity = 50) |>
    summary()

Sample size calculation for a survival endpoint

Sequential analysis with a maximum of 2 looks (group sequential design), overall significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, H1: hazard ratio = 0.6, control median(2) = 1, accrual time = 3.5, accrual intensity = 50, power 80%.

Stage 1 2
Planned information rate rate 50% 100%
Efficacy boundary (z-value scale) 2.963 1.969
Cumulative power 0.1641 0.8000
Number of subjects 130.3 175.0
Expected number of subjects under H1 167.7
Cumulative number of events 60.4 120.8
Analysis time 2.61 4.22
Expected study duration 3.95

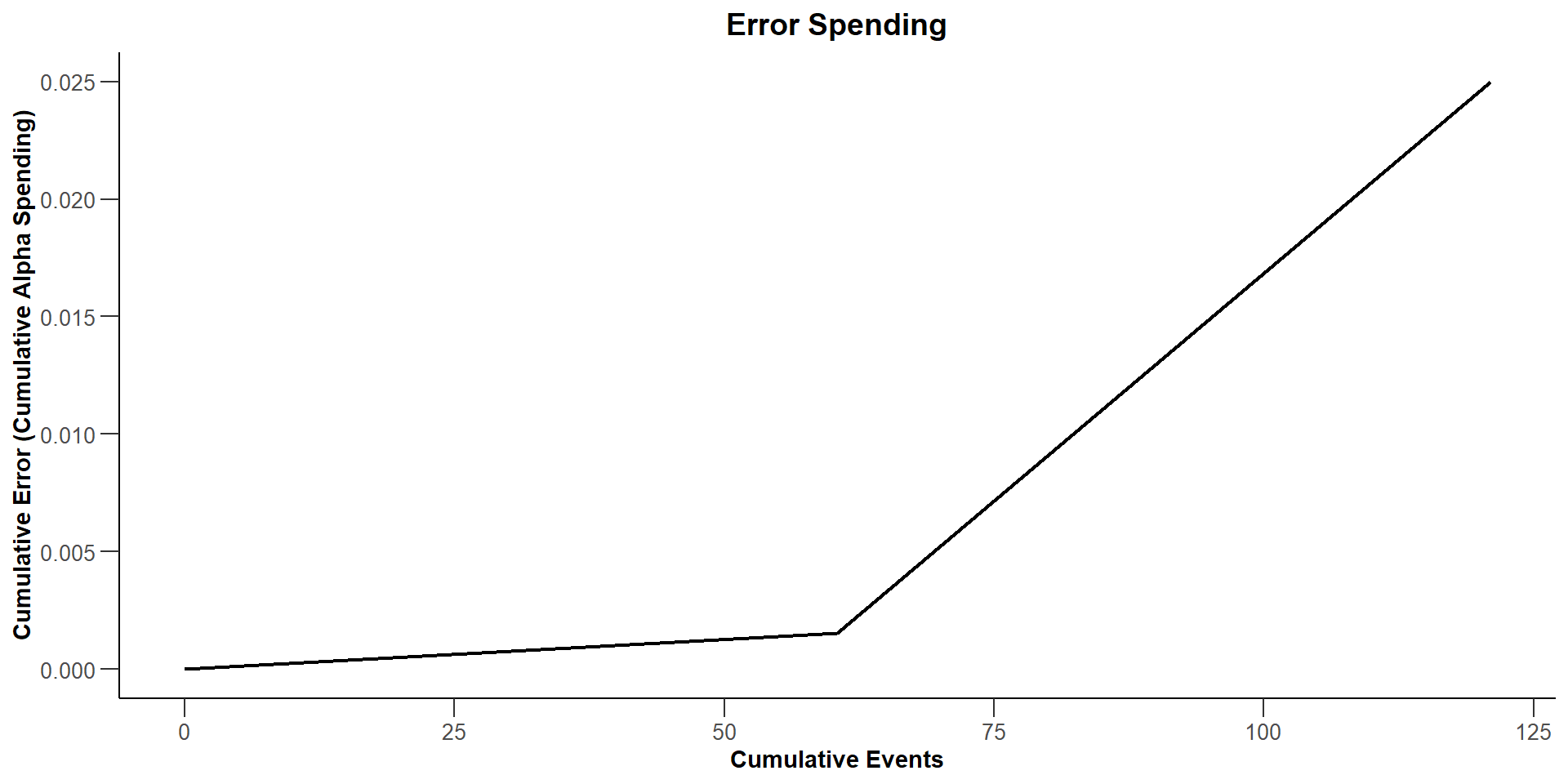

Cumulative alpha spent 0.0015 0.0250
One-sided local significance level 0.0015 0.0245
Efficacy boundary (t) 0.466 0.699
Exit probability for efficacy (under H0) 0.0015
Exit probability for efficacy (under H1) 0.1641

Legend:

  • (t): treatment effect scale

  1. What is the expected number of events under the null hypothesis and under the alternative?

  2. What is the expected study duration according to the design assumptions (i.e., under the alternative hypothesis)?

  3. What is the expected number of subjects according to the design assumptions (i.e., under the alternative hypothesis)?

design <- getDesignGroupSequential(
    typeOfDesign = "asOF", kMax = 2,
    alpha = 0.025, beta = 0.2)

getSampleSizeSurvival(design = design,
        hazardRatio = 0.6, median2 = 1,
        accrualTime = c(0, 3.5),
        accrualIntensity = 50) |>
    print()

Design plan parameters and output for survival data

Design parameters

  • Information rates: 0.500, 1.000
  • Critical values: 2.963, 1.969
  • Futility bounds (binding): -Inf
  • Cumulative alpha spending: 0.001525, 0.025000
  • Local one-sided significance levels: 0.001525, 0.024500
  • Significance level: 0.0250
  • Type II error rate: 0.2000
  • Test: one-sided

User defined parameters

  • median(2): 1.0
  • Hazard ratio: 0.600
  • Accrual time: 3.50
  • Accrual intensity: 50.0

Default parameters

  • Theta H0: 1
  • Type of computation: Schoenfeld
  • Planned allocation ratio: 1
  • kappa: 1
  • Drop-out rate (1): 0.000
  • Drop-out rate (2): 0.000
  • Drop-out time: 12.00

Sample size and output

  • Direction upper: FALSE
  • median(1): 1.7
  • lambda(1): 0.416
  • lambda(2): 0.693
  • Maximum number of subjects: 175
  • Maximum number of subjects (1): 87.5
  • Maximum number of subjects (2): 87.5
  • Number of subjects [1]: 130.3
  • Number of subjects [2]: 175
  • Maximum number of events: 120.8
  • Follow up time: 0.72
  • Reject per stage [1]: 0.1641
  • Reject per stage [2]: 0.6359
  • Early stop: 0.1641
  • Analysis time [1]: 2.61
  • Analysis time [2]: 4.22
  • Expected study duration: 3.95
  • Maximal study duration: 4.22
  • Cumulative number of events [1]: 60.382
  • Cumulative number of events [2]: 120.764
  • Expected number of events under H0: 120.7
  • Expected number of events under H0/H1: 119.3
  • Expected number of events under H1: 110.9
  • Expected number of subjects under H1: 167.7
  • Critical values (treatment effect scale) [1]: 0.466
  • Critical values (treatment effect scale) [2]: 0.699

Legend

  • (i): values of treatment arm i
  • [k]: values at stage k

Adding A Futility Boundary

Suppose at the time of the interim analysis we wish to add a futility stopping boundary.

A simple rule is considered: if the Z-statistic is above zero (where negative values of the Z-statistic indicate treatment benefit), then the trial is stopped for futility.

The rule is considered non-binding.

Question 6

Create a design object which includes this futility stopping rule.

designWithFutility <- getDesignGroupSequential(typeOfDesign = "asOF",
                                   kMax = 2,
                                   futilityBounds = 0,
                                   alpha = 0.025, beta = 0.2)

  1. Use the function getPowerSurvival() to calculate the overall power when adding the futility boundary under the same design assumptions as above. Assume recruitment lasts for 3.5 years (50 subjects per year). Assume that the maximum number of events is 121. What is the the overall power? The expected study duration and number of subjects?
getPowerSurvival(design = designWithFutility,
                      hazardRatio = 0.6, median2 = 1,
                      directionUpper = FALSE,
                      maxNumberOfEvents = 121,
                      accrualTime = c(0, 3.5),
                      accrualIntensity = 50) |> summary()

Power calculation for a survival endpoint

Sequential analysis with a maximum of 2 looks (group sequential design), overall significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, power directed towards smaller values, H1: hazard ratio = 0.6, control median(2) = 1, maximum number of events = 121, accrual time = 3.5, accrual intensity = 50.

Stage 1 2
Planned information rate rate 50% 100%
Efficacy boundary (z-value scale) 2.963 1.969
Futility boundary (z-value scale) 0
Cumulative power 0.1645 0.7977
Number of subjects 130.5 175.0
Expected number of subjects under H1 166.6
Expected number of events 109.6
Cumulative number of events 60.5 121.0
Analysis time 2.61 4.22
Expected study duration 3.92
Cumulative alpha spent 0.0015 0.0250
One-sided local significance level 0.0015 0.0245

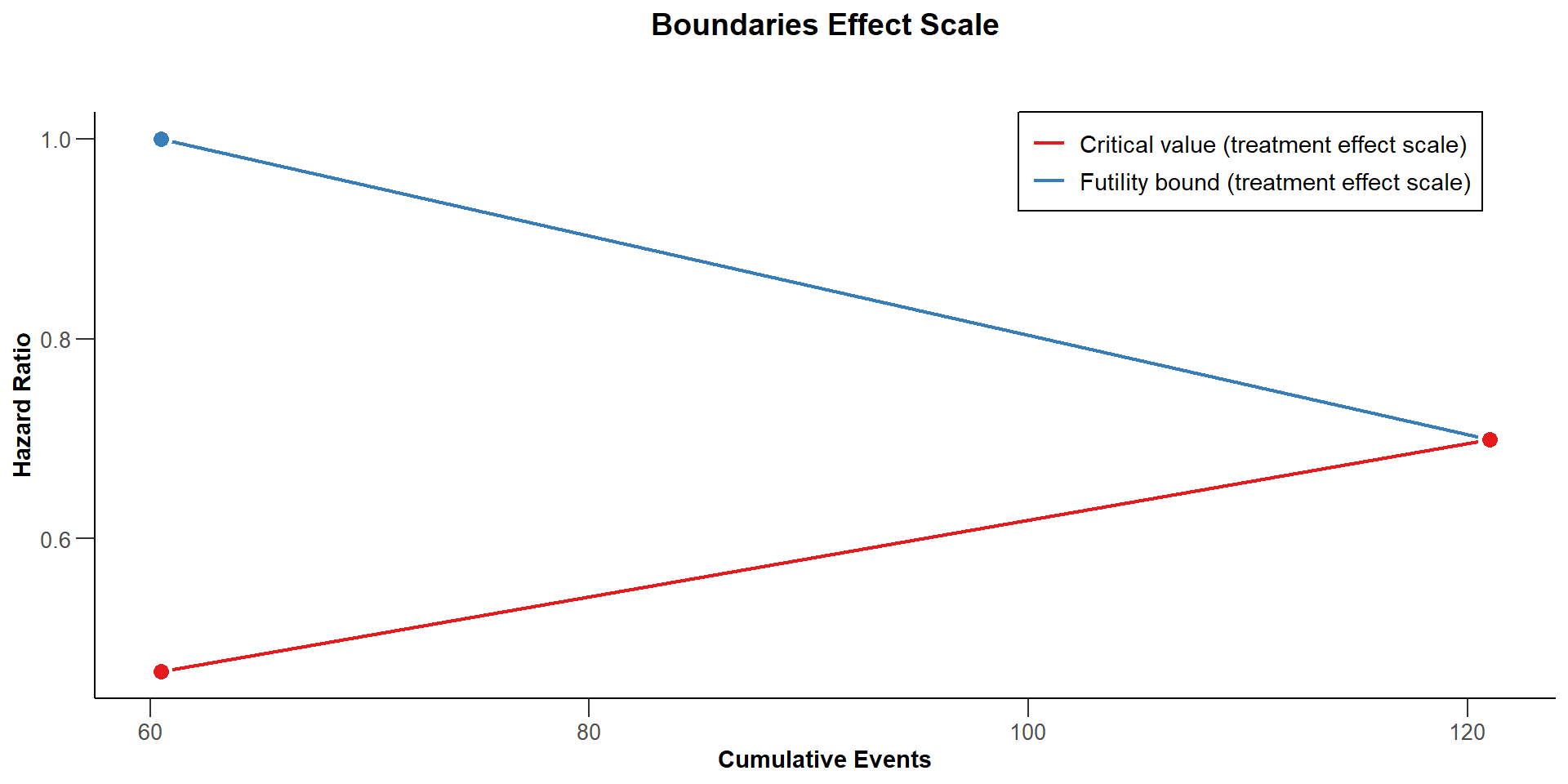

Efficacy boundary (t) 0.467 0.699
Futility boundary (t) 1.000
Overall exit probability (under H0) 0.5015
Overall exit probability (under H1) 0.1880
Exit probability for efficacy (under H0) 0.0015
Exit probability for efficacy (under H1) 0.1645
Exit probability for futility (under H0) 0.5000
Exit probability for futility (under H1) 0.0235

Legend:

  • (t): treatment effect scale

  1. What is the expected study duration and number of subjects under the null hypothesis?
getPowerSurvival(design = designWithFutility,
                      hazardRatio = 1, median2 = 1,
                      directionUpper = FALSE,
                      maxNumberOfEvents = 121,
                      accrualTime = c(0, 3.5),
                      accrualIntensity = 50) |> summary()

Power calculation for a survival endpoint

Sequential analysis with a maximum of 2 looks (group sequential design), overall significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, power directed towards smaller values, H1: hazard ratio = 1, control median(2) = 1, maximum number of events = 121, accrual time = 3.5, accrual intensity = 50.

Stage 1 2
Planned information rate rate 50% 100%
Efficacy boundary (z-value scale) 2.963 1.969
Futility boundary (z-value scale) 0
Cumulative power 0.0015 0.0247
Number of subjects 118.7 175.0
Expected number of subjects under H1 146.8
Expected number of events 90.7
Cumulative number of events 60.5 121.0
Analysis time 2.37 3.78
Expected study duration 3.08
Cumulative alpha spent 0.0015 0.0250
One-sided local significance level 0.0015 0.0245
Efficacy boundary (t) 0.467 0.699
Futility boundary (t) 1.000
Overall exit probability (under H0) 0.5015
Overall exit probability (under H1) 0.5015
Exit probability for efficacy (under H0) 0.0015
Exit probability for efficacy (under H1) 0.0015
Exit probability for futility (under H0) 0.5000
Exit probability for futility (under H1) 0.5000

Legend:

  • (t): treatment effect scale

Together:

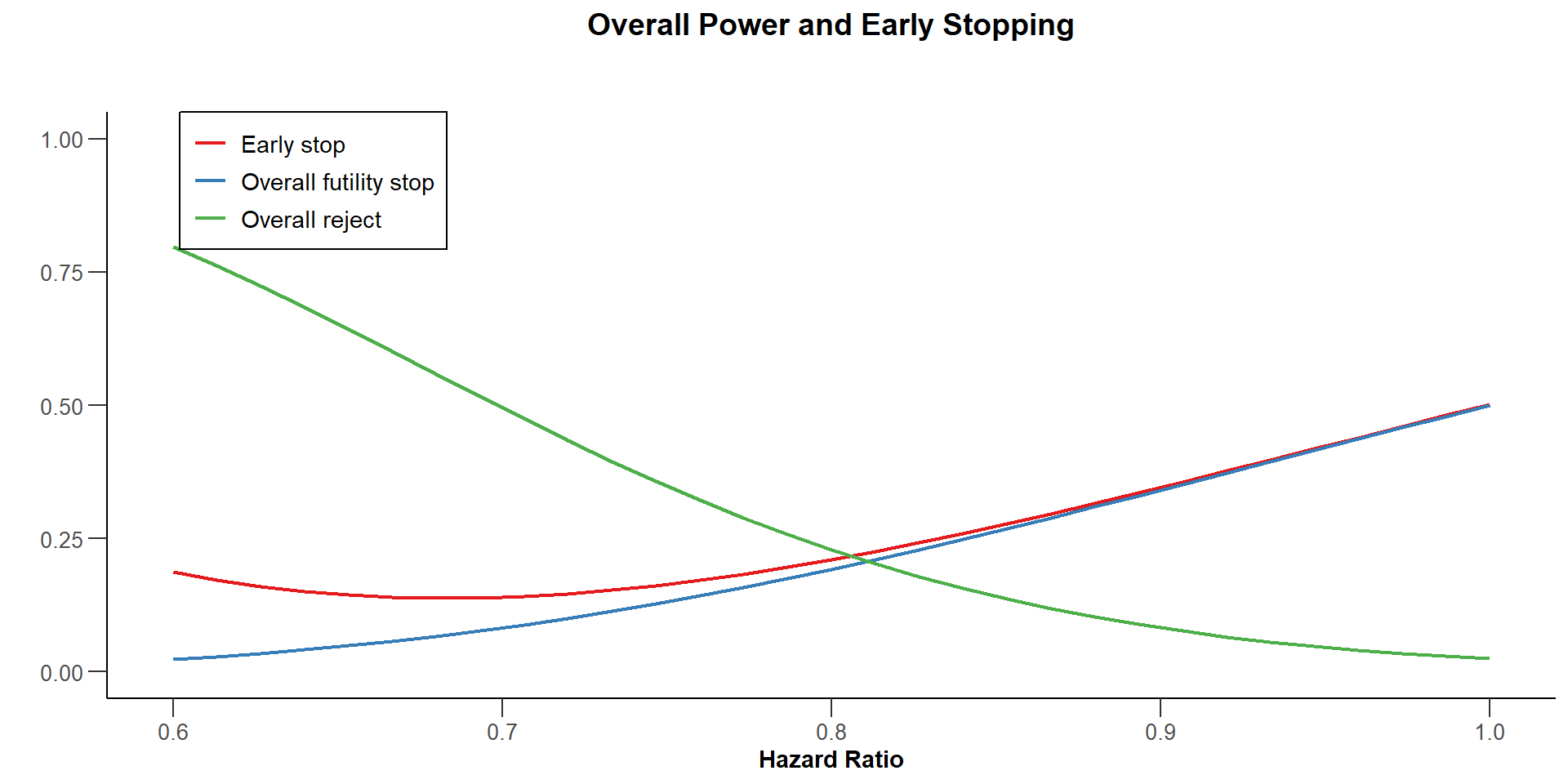

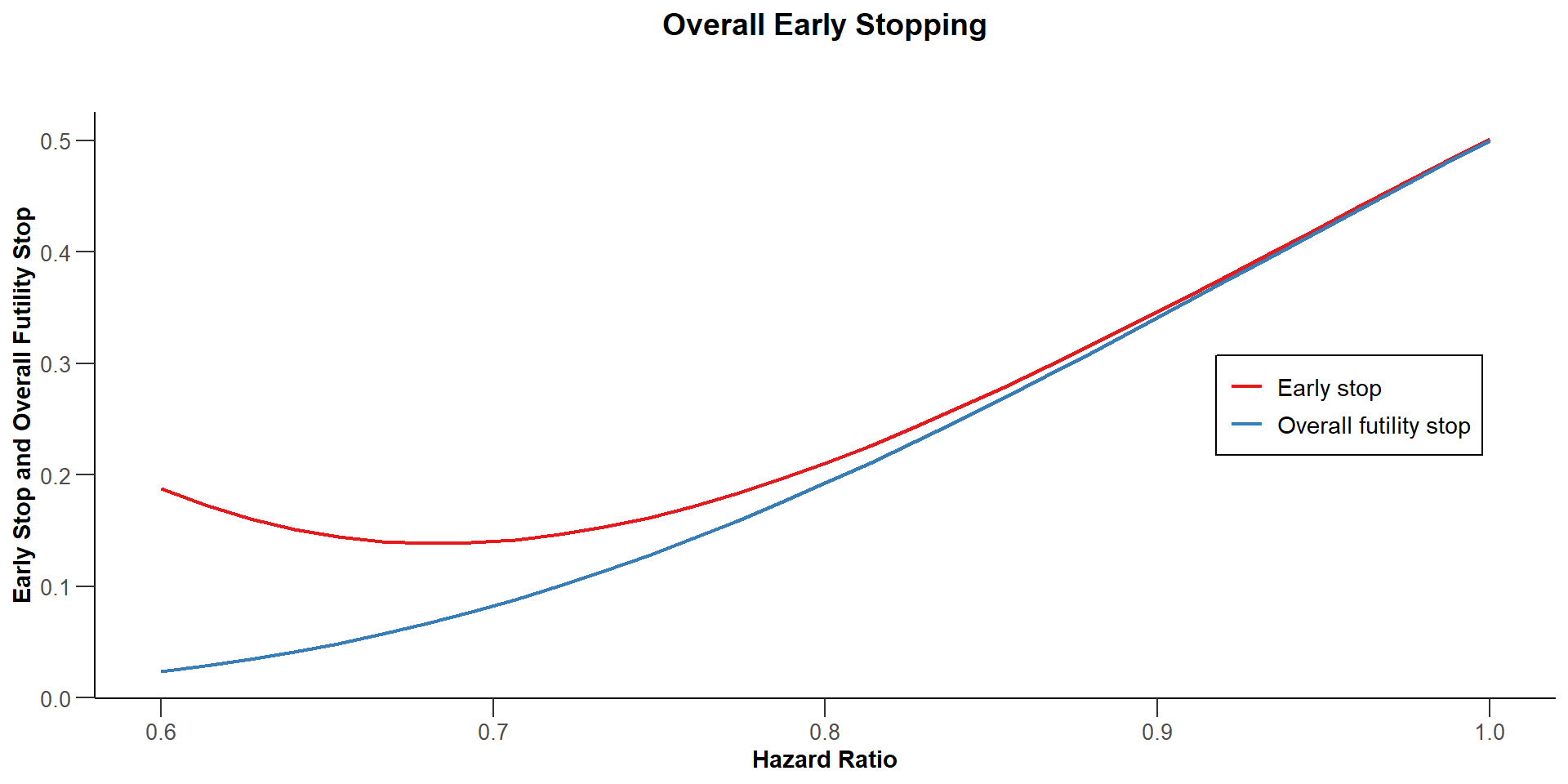

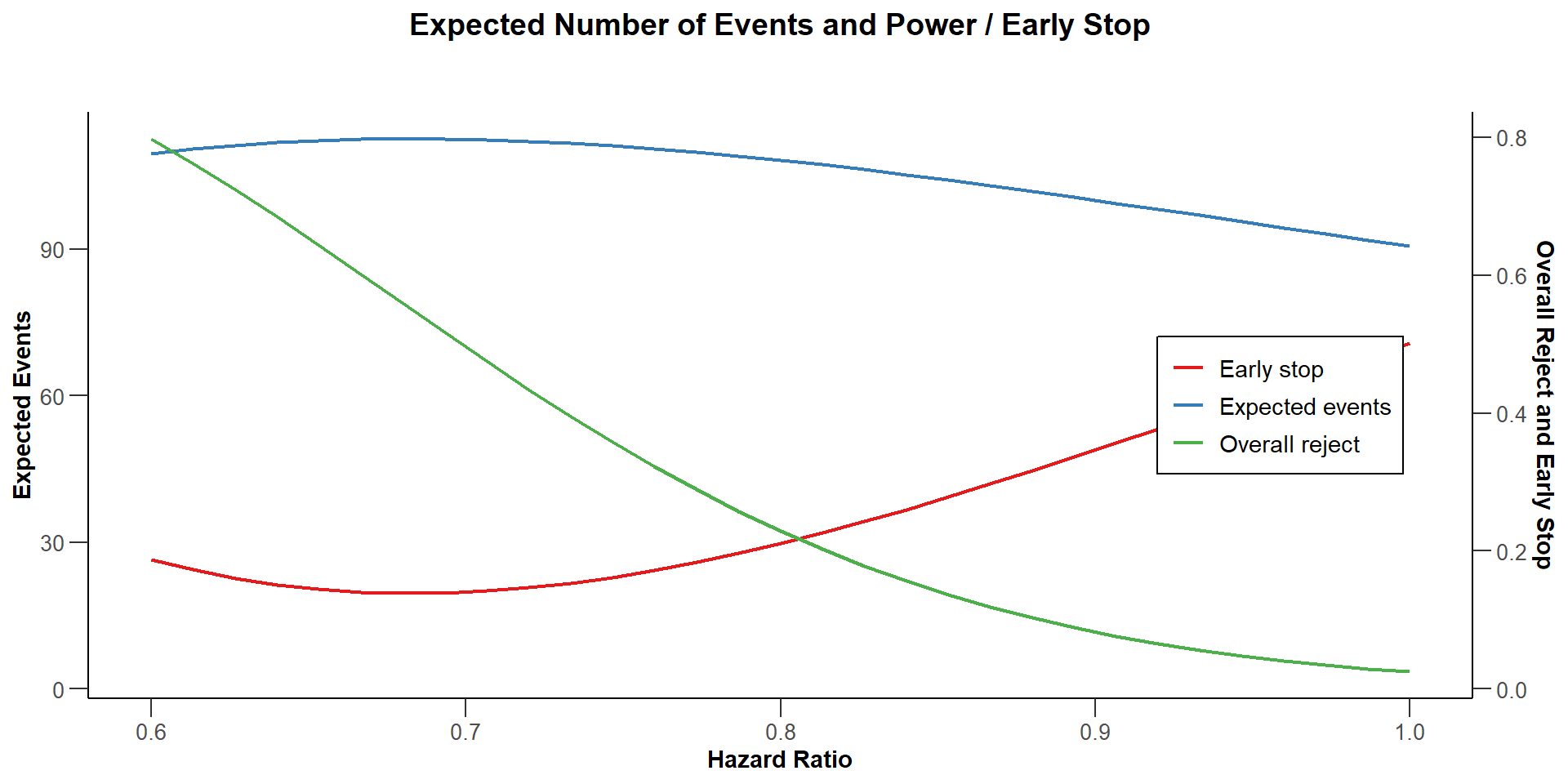

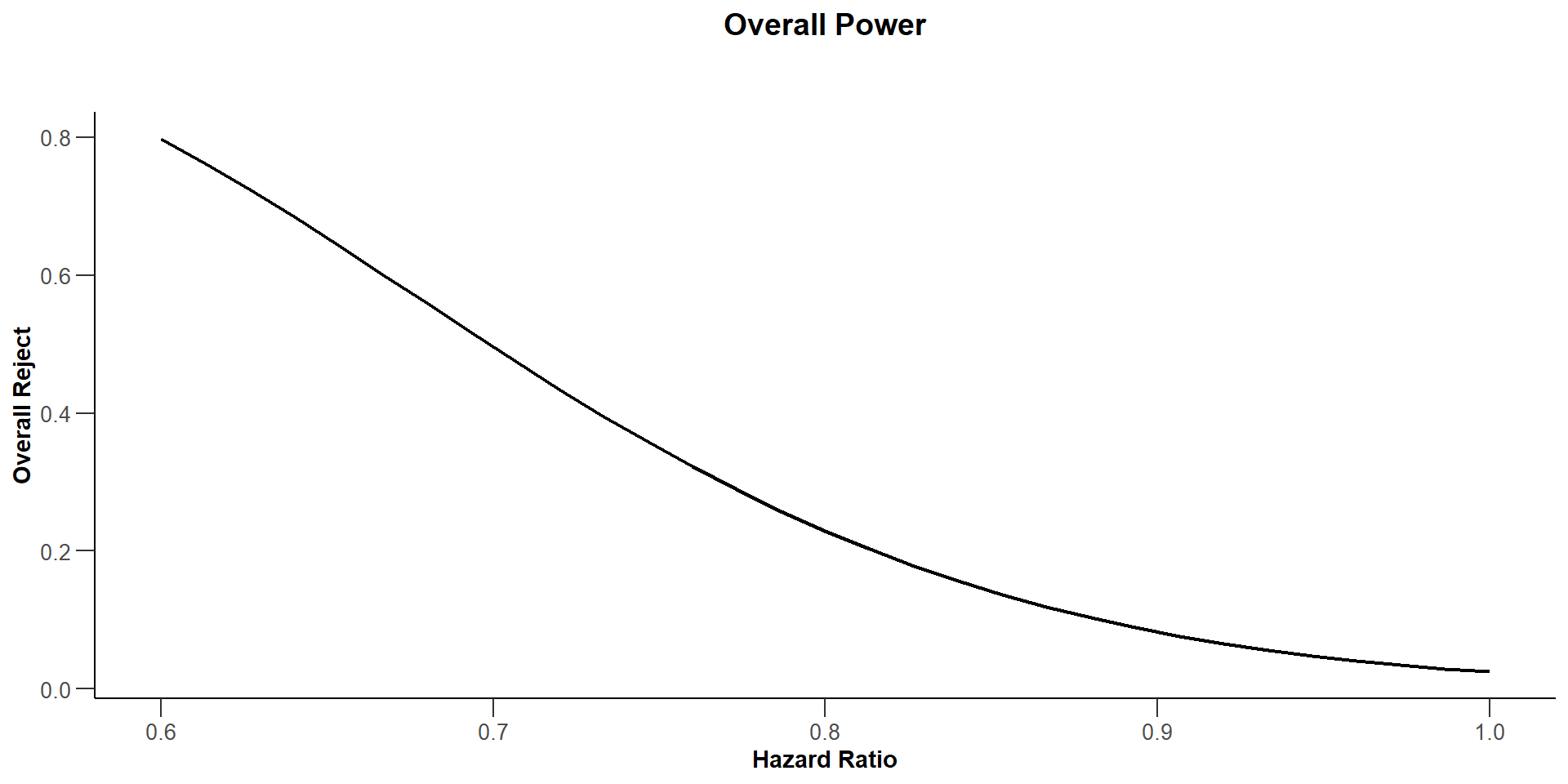

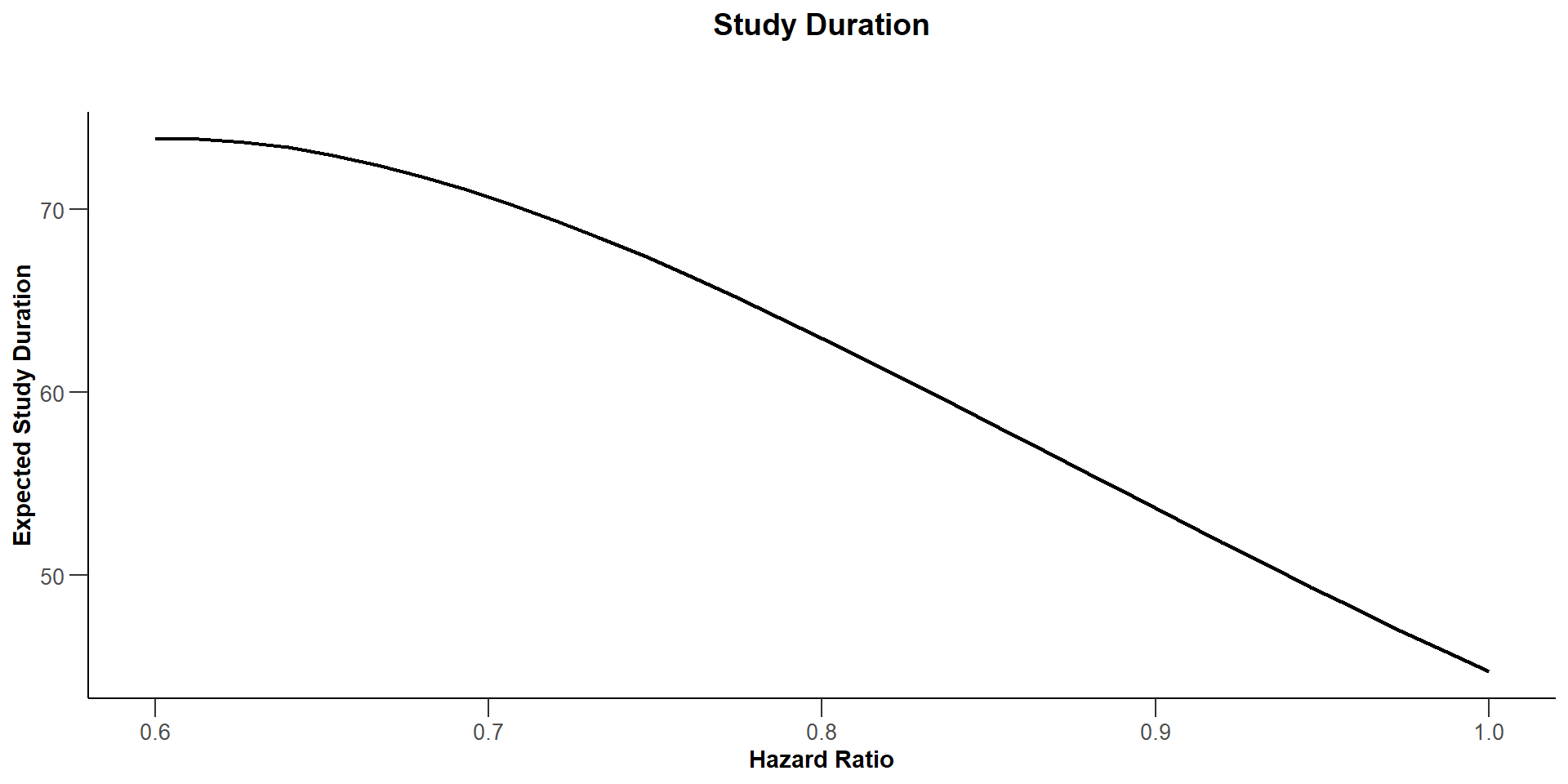

getPowerSurvival(design = designWithFutility,
                      hazardRatio = c(0.6, 1), median2 = 1,
                      directionUpper = FALSE,
                      maxNumberOfEvents = 121,
                      accrualTime = c(0, 3.5),
                      accrualIntensity = 50) |> summary()

Power calculation for a survival endpoint

Sequential analysis with a maximum of 2 looks (group sequential design), overall significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, power directed towards smaller values, H1: hazard ratio as specified, control median(2) = 1, maximum number of events = 121, accrual time = 3.5, accrual intensity = 50.

Stage 1 2
Planned information rate rate 50% 100%
Efficacy boundary (z-value scale) 2.963 1.969
Futility boundary (z-value scale) 0
Cumulative power, HR = 0.6 0.1645 0.7977
Cumulative power, HR = 1 0.0015 0.0247
Number of subjects, HR = 0.6 130.5 175.0
Number of subjects, HR = 1 118.7 175.0
Expected number of subjects under H1, HR = 0.6 166.6
Expected number of subjects under H1, HR = 1 146.8
Expected number of events, HR = 0.6 109.6
Expected number of events, HR = 1 90.7
Cumulative number of events 60.5 121.0
Analysis time, HR = 0.6 2.61 4.22
Analysis time, HR = 1 2.37 3.78
Expected study duration, HR = 0.6 3.92
Expected study duration, HR = 1 3.08
Cumulative alpha spent 0.0015 0.0250
One-sided local significance level 0.0015 0.0245
Efficacy boundary (t) 0.467 0.699
Futility boundary (t) 1.000
Overall exit probability (under H0) 0.5015
Overall exit probability (under H1) 0.1880
Exit probability for efficacy (under H0) 0.0015
Exit probability for efficacy (under H1), HR = 0.6 0.1645
Exit probability for efficacy (under H1), HR = 1 0.0015
Exit probability for futility (under H0) 0.5000
Exit probability for futility (under H1), HR = 0.6 0.0235
Exit probability for futility (under H1), HR = 1 0.5000

Legend:

  • HR: hazard ratio
  • (t): treatment effect scale

Range of Plots

getPowerSurvival(design = designWithFutility,
                      hazardRatio = c(0.6, 1), median2 = 1,
                      directionUpper = FALSE,
                      maxNumberOfEvents = 121,
                      accrualTime = c(0, 3.5),
                      accrualIntensity = 50) |> plot(type = "all")

$`Boundaries Z Scale`


$`Boundaries Effect Scale`


$`Boundaries p Values Scale`


$`Error Spending`


$`Overall Power and Early Stopping`


$`Number of Events`


$`Overall Power`


$`Overall Early Stopping`


$`Expected Number of Events`


$`Study Duration`


$`Expected Number of Subjects`

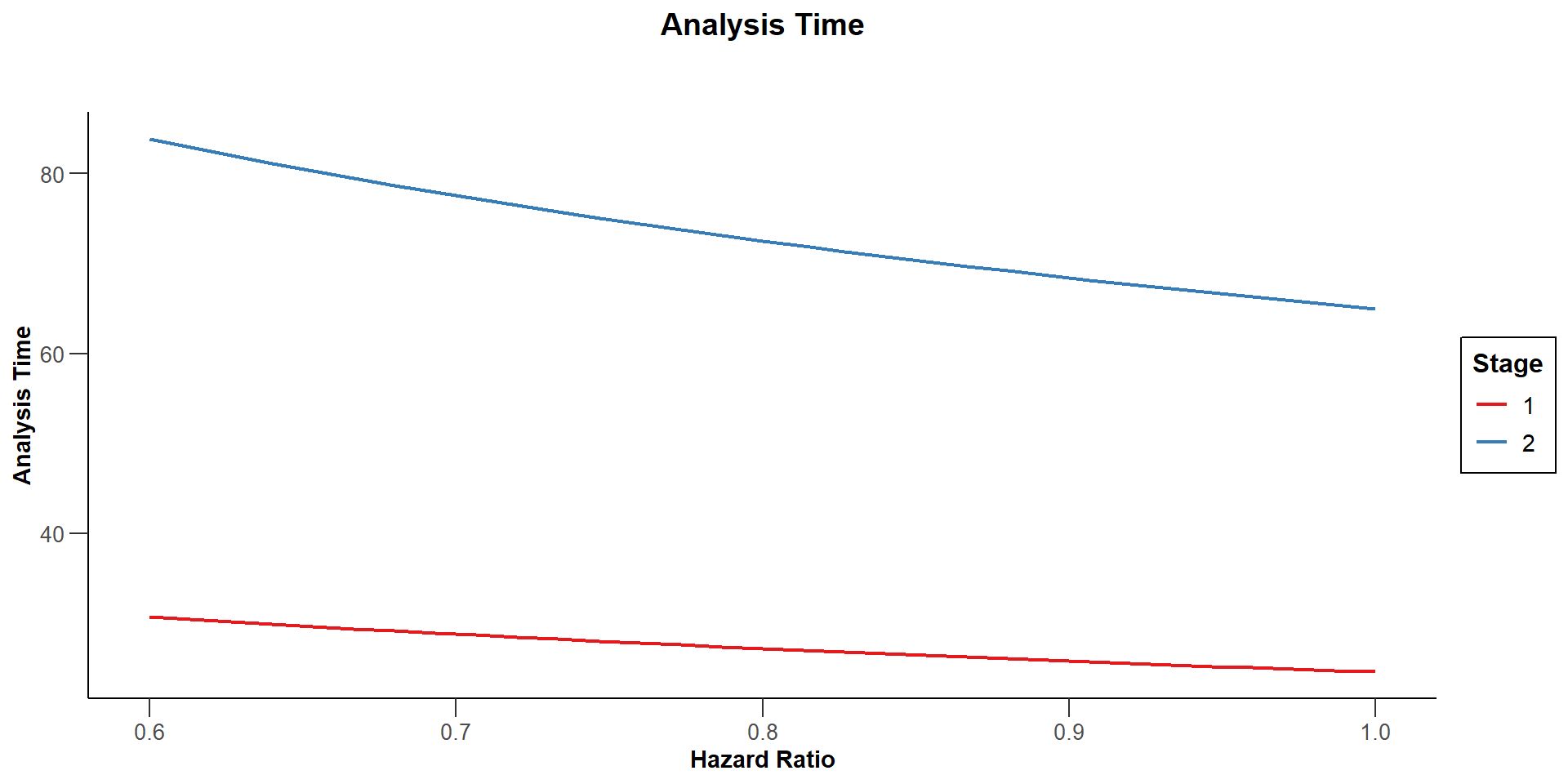

$`Analysis Time`


$`Cumulative Distribution Function`


$`Survival Function`

Interim Analysis Stage

Suppose at the interim analysis, the observed number of events is 67 and the value of the Z-statistic is -1.10 (where negative values correspond to treatment benefit).

Question 7

Re-calculate the stopping boundary based on the observed 67 events at the interim analysis.

  • Assume the same alpha-spending function as above.
  • Assume the planned maximum number of events is 121.
getDesignGroupSequential(typeOfDesign = "asOF",
                                  informationRates = c(67/121, 1),
                                  alpha = 0.025)$criticalValues
[1] 2.795107 1.974428

What is the interim analysis decision?

Test decision

Continue to the next stage, since the Z statistic is between 0 (futility bound) and -2.795 (efficacy bound)

\(\hspace{2cm}\)

Direction of test statistic

NOTE: the function getDesignGroupSequential() doesn’t know which direction of Z statistic indicates treatment benefit. By default, the critical values are displayed assuming positive Z is beneficial.

Only when using functions like getSampleSize... or getPower... we indicate the direction.

Final Analysis Stage

Suppose at the final analysis, the observed number of events is 129 and the value of the Z-statistic is -2.00 (where negative values correspond to treatment benefit).

Question 8

Re-calculate the stopping boundary based on the observed 67 events at interim and 129 events at the final analysis.

Since we have deviated from the planned number of events, our actual alpha spent no longer follows the O’Brien-Fleming-type alpha-spending function. Use the argument typeOfDesign = "asUser" instead.

getDesignGroupSequential(typeOfDesign = "asOF",
                                  informationRates = c(67/121, 1),
                                  alpha = 0.025)$alphaSpent
[1] 0.002594128 0.024999990
getDesignGroupSequential(typeOfDesign = "asUser",
                         userAlphaSpending = c(0.0025941, 0.025),
                                  informationRates = c(67/129, 1),
                                  alpha = 0.025)$criticalValues
[1] 2.795110 1.976408

What is the final analysis decision?

Test decision

Reject the null hypothesis since Z < -1.976

Alternative

Use maxInformation and getAnalysisResults()

#   Dummy design
designDummy <- getDesignGroupSequential(typeOfDesign = "asOF")

dataExample <- getDataset(cumEvents = c(67, 129),
                   cumLogRanks = c(-1.1, -2.0))

getAnalysisResults(design = designDummy,
      dataInput = dataExample, maxInformation = 121) |>
  summary()

Alternative

Analysis results for a survival endpoint

Sequential analysis with 2 looks (group sequential design). The results were calculated using a two-sample logrank test (one-sided, alpha = 0.025). H0: hazard ratio = 1 against H1: hazard ratio > 1.

Stage 1 2
Planned information rate 0.519 1
Efficacy boundary (z-value scale) 2.795 1.976
Cumulative alpha spent 0.0026 0.0250
Stage level 0.0026 0.0241
Cumulative effect size 0.764 0.703
Overall test statistic -1.100 -2.000
Overall p-value 0.8643 0.9772
Test action continue accept
Conditional rejection probability <0.0001
95% repeated confidence interval [0.386; 1.513] [0.496; 0.996]
Repeated p-value >0.5
Final p-value 0.9772
Final confidence interval [0.498; 0.993]
Median unbiased estimate 0.703

More Complicated Survival Distributions

Let’s go back to the fixed sample size design with 3.5 years of recruitment (Question 4).

Suppose now that the control arm follows a piecewise exponential distribution. For the first year the hazard rate is 1.3, and thereafter the hazard rate is 0.5.

Question 9

What is the expected study duration?

getSampleSizeSurvival(
    accrualTime = c(0, 3.5), accrualIntensity = 50,
    piecewiseSurvivalTime = c(0, 1), lambda2 = c(1.3, 0.5),
    hazardRatio = 0.6) |>
  pull(studyDuration)
[1] 3.668993

Non-Proportional Hazards

Suppose that, in addition to the changing hazard rate on the control arm, the hazard ratio also changes.

Suppose that the hazard ratio during the first year is 0.6. Thereafter, the hazard ratio is 0.8.

Question 10

Use the function getSimulationSurvival() to calculate the power of the fixed sample size design with 3.5 years recruitment (50 subjects per year).

getSimulationSurvival(directionUpper = FALSE, plannedEvents = 121,
    accrualTime = c(0, 3.5), accrualIntensity = 50,
    piecewiseSurvivalTime = c(0, 1), lambda2 = c(1.3, 0.5),
    hazardRatio = c(0.6, 0.8)) |>
  pull(overallReject)
[1] 0.73

Drop-outs

Question 11

Going back to the assumptions in Question 3, what is the expected study duration for a fixed sample size design if we specify in addition that 2% of subjects on each arm will drop out per year?

getSampleSizeSurvival(alpha = 0.025, beta = 0.2,
                      hazardRatio = 0.6, median2 = 1,
                      accrualTime = c(0, 3),
                      accrualIntensity = 50,
                      dropoutRate1 = 0.02, dropoutRate2 = 0.02,
                      dropoutTime = 1,
                      allocationRatioPlanned = 1) |>
  summary()

Was 4.776 without dropouts

Drop-outs

Sample size calculation for a survival endpoint

Fixed sample analysis, significance level 2.5% (one-sided). The results were calculated for a two-sample logrank test, H0: hazard ratio = 1, H1: hazard ratio = 0.6, control median(2) = 1, accrual time = 3, accrual intensity = 50, dropout rate(1) = 0.02, dropout rate(2) = 0.02, dropout time = 1, power 80%.

Stage Fixed
Efficacy boundary (z-value scale) 1.960
Number of subjects 150.0
Number of events 120.3
Analysis time 4.98
Expected study duration 4.98
One-sided local significance level 0.0250
Efficacy boundary (t) 0.700

Legend:

  • (t): treatment effect scale

Questions and Answers
